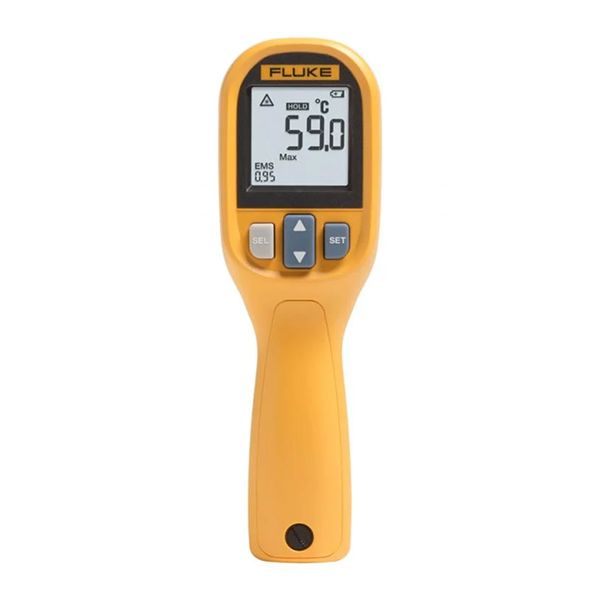

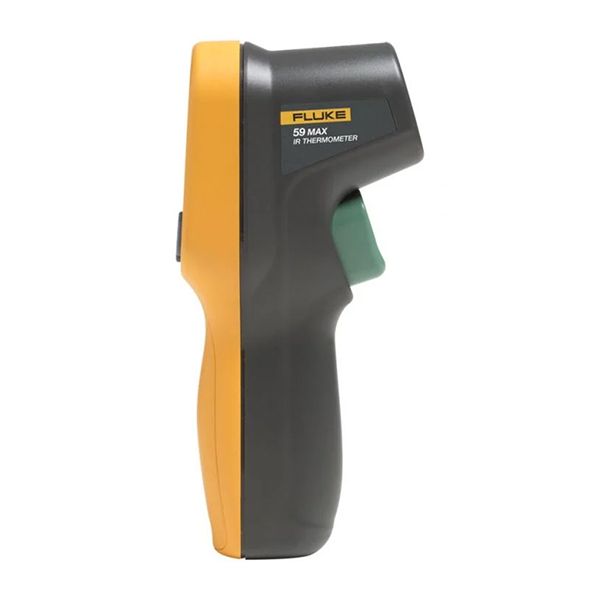

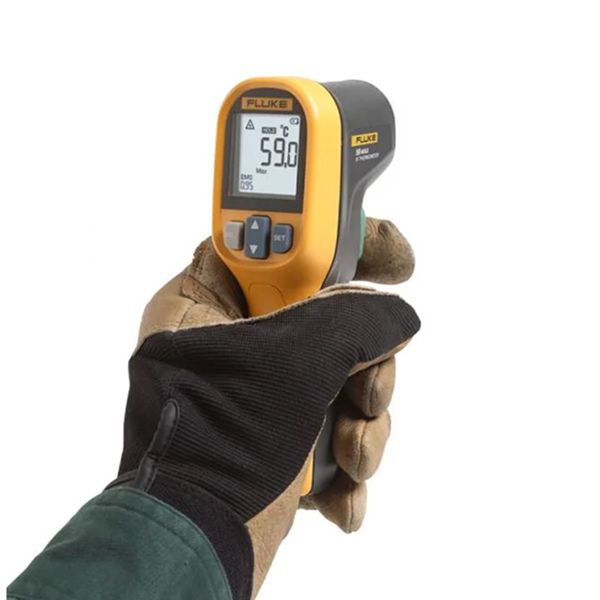

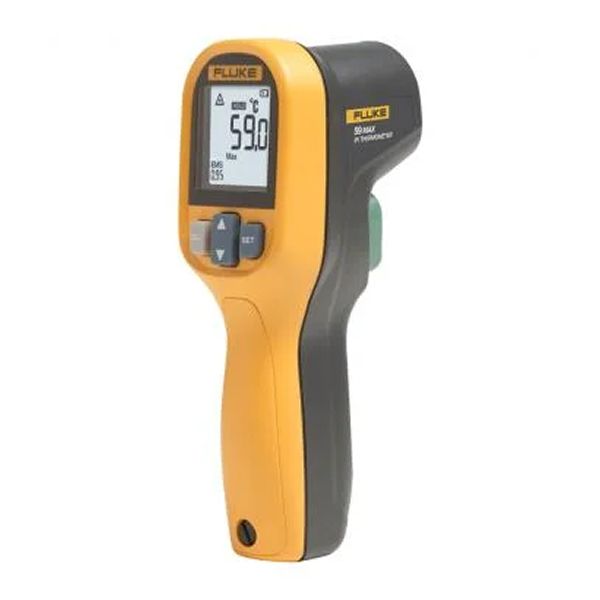

Product overview: 59 MAX Infrared Thermometer

The Fluke 59 MAX Infrared Thermometer is a precision thermometer that delivers accurate, repeatable measurements and still fits within your budget. Use the bright backlit LCD display on the Fluke 59 MAX to perform non-contact temperature measurements on transformers, motors, pumps, panels, breakers, compressors, ducts, and vents.

Designed for quick, easy measurements

It is extremely easy to use and compact enough to fit in your hand and your tool bag. Designed to withstand a one-meter drop, you can count on the 59 MAX to work when you need it. This IR thermometer offers a variety of measurement functions:

Selectable MAX, MIN, DIF and AVG functions
Hi and Lo alarms for rapid display of measurements outside the limits

Laser targeting

It features an 8:1 distance-to-spot ratio and single laser targeting for consistent, accurate measurements. With a measurement range from -30 °C to 350 °C (-22 °F to 662 °F) you can measure and track a wide variety of temperatures.

Powered by one (1) AA battery

One-year warranty

Specifications

Specifications
Temperature Range	-30°C to 350°C (-22°F to 662°F)
Accuracy (Calibration geometry with ambient temperature 23°C ±2°C)	≥ 0°C	±2.0°C or ±2.0% of reading, whichever is greater
	≥ -10°C to <0°C	±2.0°C
	< -10°C	±3.0°C
	≥ 32°F	±4.0°F or ±2.0% of reading, whichever is greater
	≥ 14°F to <32°F	±4.0°F
	< 14°F	±6.0°F
Response Time (95%)	< 500 ms (95% of reading)
Spectral Response	8 mm to 14 mm
Emissivity	0.10 to 1.00
Distance to Spot Ratio	8:1 (calculated at 90% energy)
Display Resolution	0.1°C (0.2°F)
Repeatability (% of reading)	±1.0% of reading or ±1.0°C (±2.0°F), whichever is greater
Power	1 AA IEC LR06 Battery
Battery Life	12 hours with laser and backlight on
Weight	220 g (7.76 oz)
Size	156 x 80 x 50 mm (6.14 x 3.15 x 2 in)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to +60°C (-4°F to 140°F), (without battery)
Operating Humidity	10% to 90% RH non-condensing @ 30°C (86°F)
Operating Altitude	2000 meters above mean sea level
Storage Altitude	12,000 meters above mean sea level
Drop Test	1 m
Ingress Protection Rating	IP40 per IEC 60529
Vibration and Shock	IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms
Compliance	EN/IEC 61010-1
Laser Safety	FDA and EN 60825-1 Class II
Electromagnetic Compatibility	61326-1 EN 61326-2
